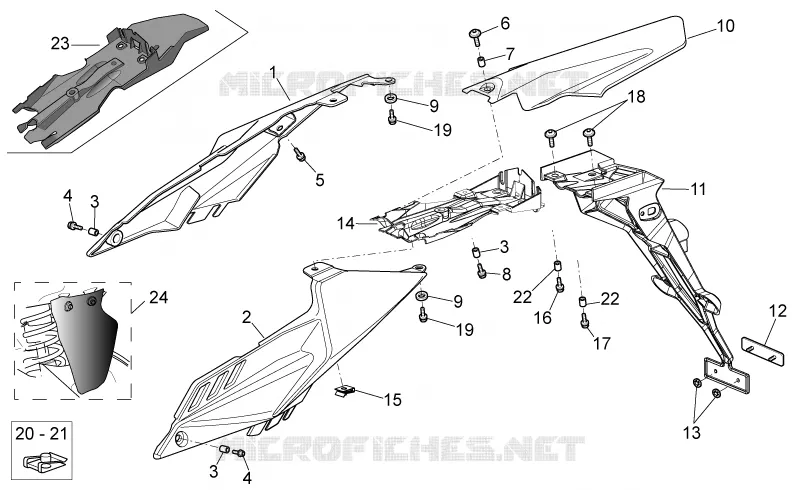

Carrosserie posterieure I
1
2
3
3
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
22
23
24
1
Rh rear fairing
AP8184511
Non disponible
1
Rh rear fairing
AP8184513
Non disponible
2
Lh rear fairing
AP8184512
$70,25 Prix unitaire TTC
2
Lh rear fairing
AP8184510
Non disponible
3
Bush d.10-h.3,5
AP9100053
$1,70 Prix unitaire TTC
4
Screw w/ flange M6x16 inox
AP9100645
$2,95 Prix unitaire TTC
4
Screw w/ flange M6x16 titan
853679
Non disponible
5
Screw w/ flange M6x25
AP8152280
$0,25 Prix unitaire TTC
5
Screw w/ flange M6x25 titan
853681
Non disponible
6
Vite TBEI M6x25
AP8152117
$0,25 Prix unitaire TTC
6
Hex socket screw M6x20
853682
Non disponible
7
Bush 10x7
AP9100594
$3,65 Prix unitaire TTC
8
Screw w/ flange M6x20
AP8152279
$0,51 Prix unitaire TTC
9
Washer 6,6x18x1,6*
AP8150015
$0,16 Prix unitaire TTC
10
Rear mudguard
AP8156340
Non disponible
10
Rear mudguard
AP8156341
Non disponible
11
Number plate holder
855041
Non disponible
12
Rear reflector
AP8112202
Non disponible
13
Washer for shafts D5
AP8150450
$0,25 Prix unitaire TTC
14
Saddle supp.lower lockup
855046
$17,83 Prix unitaire TTC
15
Low self-locking nut M6
853580
Non disponible
15
Clip M6
AP8102376
Non disponible
16
Screw w/ flange M6x20
AP8152279
$0,51 Prix unitaire TTC
17
Screw w/ flange M6x20
AP8152279
$0,51 Prix unitaire TTC
18
Screw w/ flange M5x9
AP8152339
$3,65 Prix unitaire TTC
19
Screw w/ flange M6x12
AP8152277
$0,25 Prix unitaire TTC
19
Screw w/ flange
853680
Non disponible
20
Clip M5
AP8102375
$0,69 Prix unitaire TTC
21
Clip M6
AP8102376
Non disponible
22
T bush
AP8121795
$3,38 Prix unitaire TTC
23
Rac.number plate holder
855050
$7,23 Prix unitaire TTC
24
Shock abs. guard plate racing
851450
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
