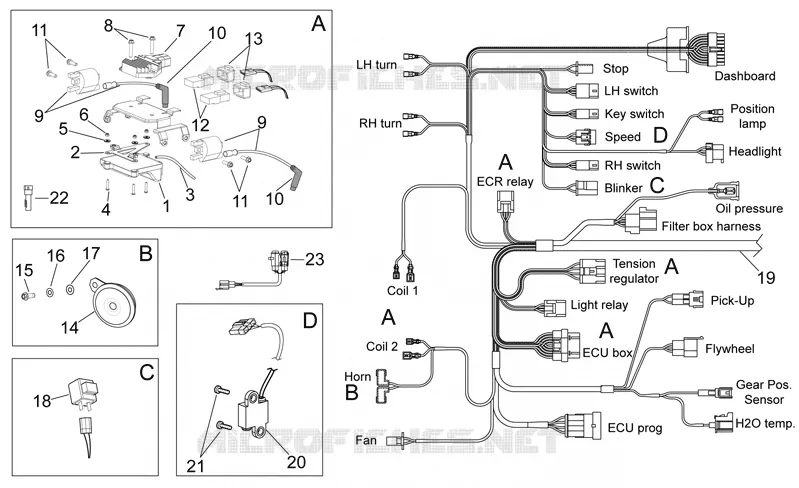

Circuit electrique I
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Electronic control unit
AP9100447
Non disponible
2
Control unit support plate
851023
$8,91 Prix unitaire TTC
3
Breather pipe
AP8220598
$5,38 Prix unitaire TTC
4
Hex socket screw M4x20 titan
853591
Non disponible
4
Hex socket screw M4x20
AP9100945
Non disponible
5
Washer 4,3x12x1 titan
853592
Non disponible
5
Washer 4,3x12x1
AP8150011
$0,25 Prix unitaire TTC
6
Nut M4
AP8150204
$0,51 Prix unitaire TTC
6
Low self-locking nut M4 titan
853593
Non disponible
7
Voltage regulator
AP9100424
Non disponible
8
Screw w/ flange M6x30
AP8152281
$1,70 Prix unitaire TTC
8
Screw w/ flange M6x30 titan
853594
Non disponible
9
Coil
AP9100429
$138,48 Prix unitaire TTC
10
Sparkplug cap
AP9100423
$20,25 Prix unitaire TTC
11
Screw w/ flange M6x16 titan
853595
Non disponible
11
Screw w/ flange M6x16
AP8152278
$1,77 Prix unitaire TTC
12
Relay 12V-30A
AP8224462
$14,17 Prix unitaire TTC
13
Rubber spacer *
AP8220283
$0,75 Prix unitaire TTC
14
Horn
AP8127391
Non disponible
15
Hex socket screw
AP8152112
$3,65 Prix unitaire TTC
16
Washer 8,5x15x0,8
AP8150376
$0,08 Prix unitaire TTC
17
Washer 8,4x16x1,6
AP8150017
$3,65 Prix unitaire TTC
18
Flasher unit
AP8124235
$14,18 Prix unitaire TTC
19
Main wiring harness
855053
Non disponible
19
Main wiring harness
855367
Non disponible
20
Speed sensor
AP9100965
$113,74 Prix unitaire TTC
21
Self-tapping screw M4x12
AP8150460
$3,65 Prix unitaire TTC
22
Protection box
858246
$15,22 Prix unitaire TTC
23
Indicators assembly
856665
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
