par

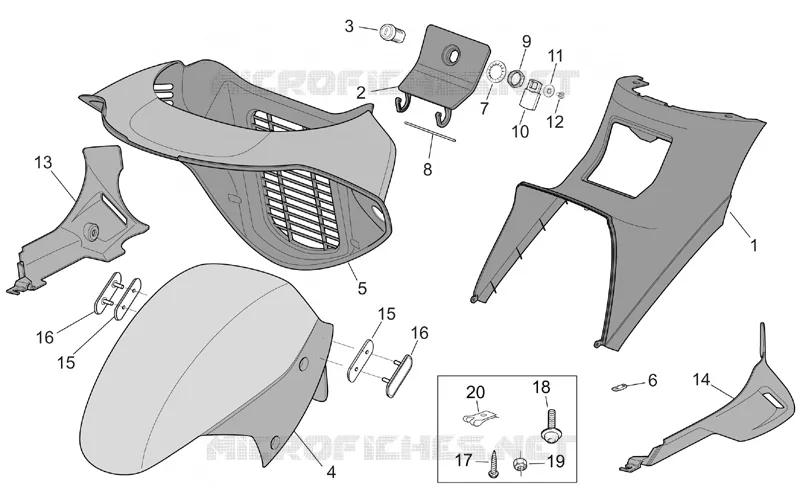

Carrosserie av. III
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
18
19
20
1
Black tunnel with hole
AP8178615
Non disponible
1
Black tunnel without hole
AP8149481
Non disponible
2
Fuel filler lid
AP8149477
Non disponible
3
Lock
AP8104489
Non disponible
4
Front mudguard, grey
AP8126877
Non disponible
4
Front mudguard, blue
AP8156156
Non disponible
4
Front mudguard, grey
AP8156038
Non disponible
4
Front mudguard, blue
AP8126994
Non disponible
4
Front mudguard, cyan
AP8126996
Non disponible
4
Front mudguard, red
AP8156036
Non disponible
4
Front mudguard, cyan
AP8156018
Non disponible
4
Front mudguard, red
AP8126995
Non disponible
4
Front mudguard, blue
AP8156016
Non disponible
4
Front mudguard, grey
AP8156159
Non disponible
4
Front mudguard, blue
AP8156157
Non disponible
4
Front mudguard, red
AP8156035
Non disponible
4
Front mudguard, grey
AP8156004
Non disponible
4
Front mudguard, grey
AP8156037
Non disponible
4
Front mudguard, red
AP8156017
Non disponible
5
Air duct, black
AP8149482
Non disponible
6
Plate
AP8134799
$5,38 Prix unitaire TTC
7
Nickel plated lock washer *
AP8201305
Non disponible
8
Pin
AP8121568
Non disponible
9
Low nut M19x1*
AP8152194
$1,10 Prix unitaire TTC
10
Lever
AP8201620
$5,38 Prix unitaire TTC
11
Washer
AP8201748
$0,14 Prix unitaire TTC
12
Screw M4x6
AP8201749
$0,16 Prix unitaire TTC
13
RH central stand cover
AP8158466
Non disponible
14
LH central stand cover
AP8158465
$8,91 Prix unitaire TTC
15
Rubber spacer
AP8144556
Non disponible
16
Reflector, amber
AP8124719
$8,16 Prix unitaire TTC
17
Self-tap screw 3,9x14
AP8150413
$0,08 Prix unitaire TTC
18
Screw w/ flange M6x16
AP8152246
$0,27 Prix unitaire TTC
19
Nut M4
AP8150204
$0,51 Prix unitaire TTC
20
Clip M6
AP8102376
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
