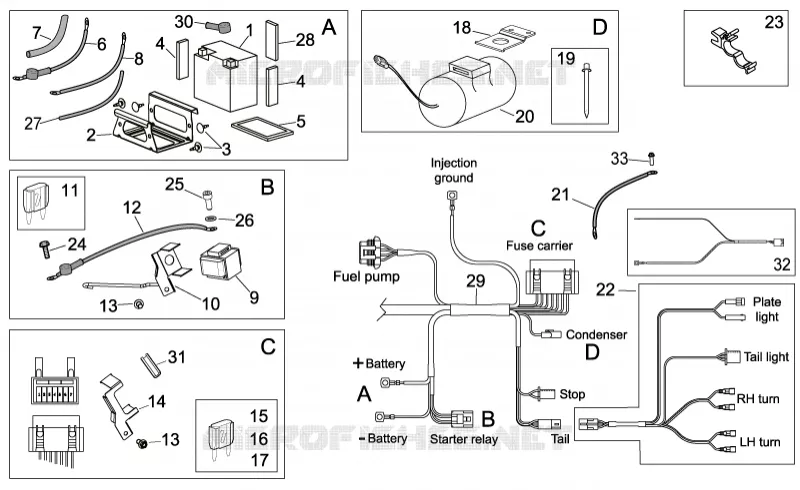

Circuit electrique II
1
2
3
4
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Battery
AP9100512
$137,03 Prix unitaire TTC
2
Battery case cpl.
AP9101000
$20,60 Prix unitaire TTC
3
Rubber spacer
AP8120001
$0,77 Prix unitaire TTC
4
Gasket
AP8144538
Non disponible
5
Rubber spacer
AP9100725
Non disponible
6
Relay battery wiring
AP9100371
$12,30 Prix unitaire TTC
7
Rubber pipe 12,8x8,8 L=120
CM239401
Non disponible
8
Ground-battery lead
AP9100372
$15,37 Prix unitaire TTC
9
Starter relay
AP9100487
$55,57 Prix unitaire TTC
10
Plate
AP9100325
$10,00 Prix unitaire TTC
11
Fuse 30A
496404
Non disponible
12
Starter motor wiring harness
AP9100558
$21,52 Prix unitaire TTC
13
Screw w/ flange M5x12
AP8152272
$0,08 Prix unitaire TTC
14
Fuse block support
AP9100327
$5,38 Prix unitaire TTC
15
Fuse
AP8176099
Non disponible
16
Fuse 7,5A
252945
$0,42 Prix unitaire TTC
17
Fuse 15A
290860
$5,73 Prix unitaire TTC
18
Plate
AP9100742
Non disponible
19
Tearing rivet inox
AP9100782
Non disponible
20
Condenser 10000 Uf
AP9100739
$58,68 Prix unitaire TTC
21
Engine-frame ground wiring
AP9100783
$15,37 Prix unitaire TTC
22
Taillight wiring harn.
855111
$17,69 Prix unitaire TTC
23
Spring
AP9100765
$5,38 Prix unitaire TTC
24
Screw w/ flange M6x12
AP8152277
$0,25 Prix unitaire TTC
25
Hex socket screw
AP8152123
$3,65 Prix unitaire TTC
26
Spring washer 6,4x11x0,5*
AP8150429
Non disponible
27
Rubber pipe 12,8x8,8 L=95
CM239402
Non disponible
28
Adhesive sponge 15x8
AP8117004
$5,38 Prix unitaire TTC
29
Main wiring harness
859728
Non disponible
30
Terminal cap
AP9100959
$5,38 Prix unitaire TTC
31
Gasket
AP9100997
$5,38 Prix unitaire TTC
32
Wiring switch
855604
Non disponible
33
Screw w/ flange M5x12
AP8152272
$0,08 Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
