par

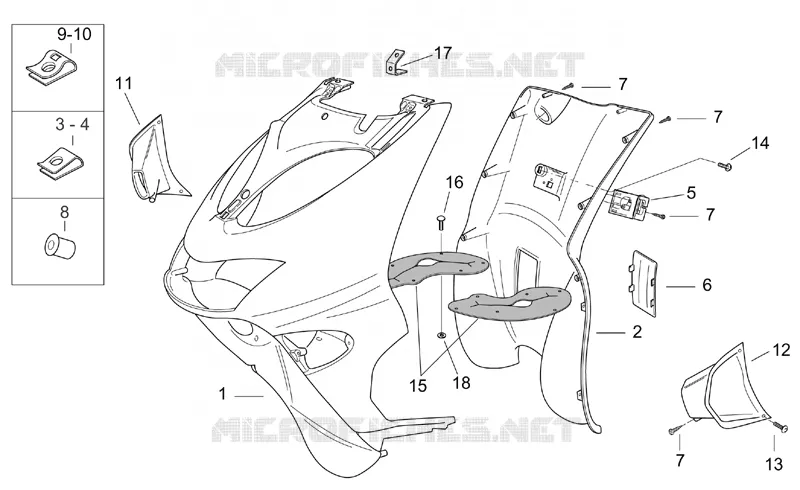

Carrosserie av. III
1
2
3
4
5
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
1
Front shield, grey+decal
AP8258549
Non disponible
1
Front shield, black
AP8258809
Non disponible
1
Front shield, black
AP8258781
Non disponible
1
Front shield, red
AP8258843
Non disponible
1
Front shield, A.white
AP8268244
$441,27 Prix unitaire TTC
1
Front shield, black
AP8258822
Non disponible
1
Front shield, diablo black+dec
AP8258482
Non disponible
1
Front shield, red
AP8258829
Non disponible
1
Front shield, grey
AP8268218
Non disponible
1
Front shield, red
AP8268203
Non disponible
1
Front shield, Ap. black
AP8268271
Non disponible
1
Front shield, blue
AP8258700
Non disponible
2
Internal shield, met.black
AP8248656
$31,97 Prix unitaire TTC
3
Screw clip D5,5*
AP8201763
$3,65 Prix unitaire TTC
4
Screw clip D4,2
AP8102782
Non disponible
5
Undersaddle hook cpl.
AP8258034
$6,30 Prix unitaire TTC
6
Type appr.data cover, black
AP8248657
Non disponible
7
Self-tap screw 3,9x14
AP8150413
$0,08 Prix unitaire TTC
8
Rubber w/ insert
AP8120531
$6,30 Prix unitaire TTC
9
Clip M5
AP8102375
$0,69 Prix unitaire TTC
10
Clip M6
AP8102376
Non disponible
11
RH air intake, met.black
AP8249713
$108,36 Prix unitaire TTC
12
LH air intake, met.black
AP8249715
$108,36 Prix unitaire TTC
13
Screw w/ flange M5x16
AP8152298
$0,21 Prix unitaire TTC
14
Screw w/ flange M5x12
AP8152302
Non disponible
15
Front fork lower closing
AP8217034
Non disponible
16
Plastic rivet
AP8220471
$5,38 Prix unitaire TTC
17
Water cooler grille support
AP8234194
$7,23 Prix unitaire TTC
18
Washer 6,6x18*
AP8150179
$0,08 Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
