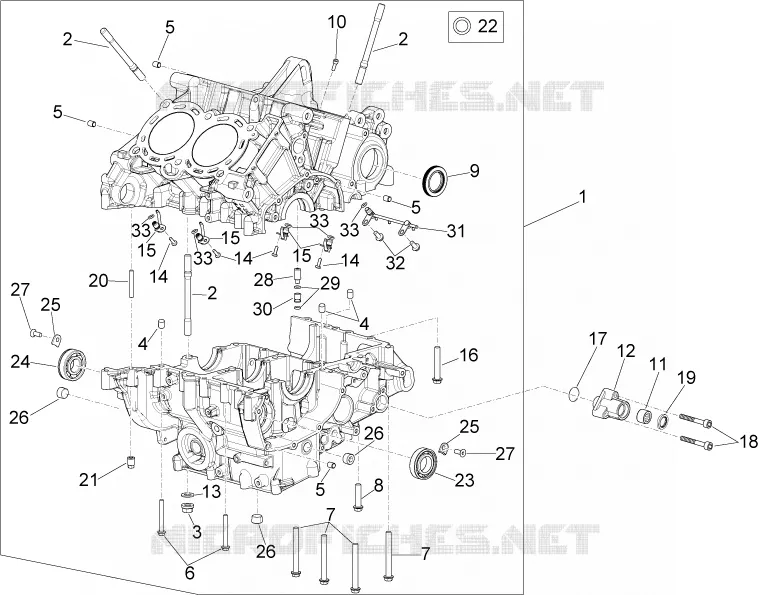

Carters I
33
24
23
22
21
20
19
18
17
16
15
15
15
14
14
14
33
33
33
32
31
30
29
28
28
27
27
26
26
25
25
13
12
5
5
4
4
3
2
2
2
1
11
10
9
8
7
7
6
5
5
1
COUPLED CRANKCASE COMPLETE ASSY
2A0008655
$8 977,48 Prix unitaire TTC
2
Stud bolt m10x126
857087
$4,37 Prix unitaire TTC
3
Flanged nut M10x1
897434
$12,54 Prix unitaire TTC
4
Pin M8x12
857427
$0,27 Prix unitaire TTC
5
Pin
411209
$2,89 Prix unitaire TTC
6
Screw w/ flange M6x50
AP9100433
$6,08 Prix unitaire TTC
7
Screw w/ flange
AP8152294
$7,75 Prix unitaire TTC
8
Screw w/ flange
AP8152289
$3,65 Prix unitaire TTC
9
Gasket ring 30x47x7
857128
$11,76 Prix unitaire TTC
10
Hex socket screw M6x40
AP8152003
$3,70 Prix unitaire TTC
11
12x8x12 roller bearing
B045224
$6,35 Prix unitaire TTC
12
Maintenance
857090
$46,51 Prix unitaire TTC
13
Washer 19 x 10,5 x 1,6
857208
$2,22 Prix unitaire TTC
14
Screw TB 4X12 TORX
B046202
$3,65 Prix unitaire TTC
15
Piston cooling jet
2A000885
$45,50 Prix unitaire TTC
16
Screw w/ flange M8x50
AP8152292
$3,65 Prix unitaire TTC
17
Gasket ring 17,12X2,62
857109
$1,38 Prix unitaire TTC
18
Hex socket screw M6x35
AP8150285
$0,34 Prix unitaire TTC
19
Gasket ring 12x22
857127
Non disponible
20
Stud bolt
2A000295
$6,60 Prix unitaire TTC
21
Special nut
857496
$2,50 Prix unitaire TTC
22
O-ring
857144
$2,72 Prix unitaire TTC
23
Bearing
897436
$25,76 Prix unitaire TTC
24
Bearing
897435
$20,14 Prix unitaire TTC
25
Check bearing plate
AP9150145
$14,30 Prix unitaire TTC
26
Plug M16X1,5
974060
$0,48 Prix unitaire TTC
27
screw M6x16
AP8152166
$3,65 Prix unitaire TTC
28
Relief Valve
B045126
$40,88 Prix unitaire TTC
29
O-ring 2018
AP8120965
$3,65 Prix unitaire TTC
30
Lubricating jet
2A000363
$10,00 Prix unitaire TTC
31
Lubrication pipe
2A000569
$61,80 Prix unitaire TTC
32
Screw w/ flange M6x12
AP8152277
$0,25 Prix unitaire TTC
33
O-ring 6x1
GU90706009
$3,65 Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
