par

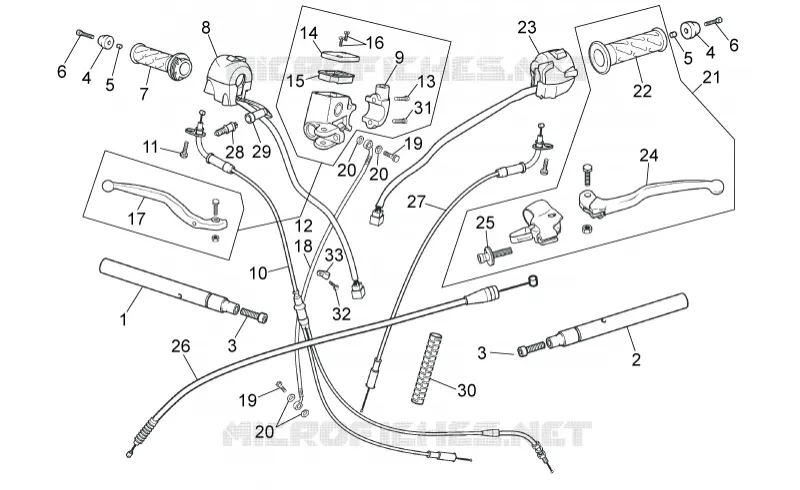

Commandes
1
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Right half handlebar
00H00902471
Non disponible
2
Left half handlebar
00H00902481
Non disponible
3
screw
00002083001
Non disponible
4
H.bars anti.v weight
00G02102923
Non disponible
5
Pin
00H01600911
Non disponible
6
screw
00004154000
$3,65 Prix unitaire TTC
7
Throttle+hand grip
00H00903081
Non disponible
8
Switch
86202R
$43,25 Prix unitaire TTC
9
U-bolt
00H02101901
Non disponible
10
Throttle cable w/ splitter
00H00932171
Non disponible
11
screw
00000012516
$3,65 Prix unitaire TTC
12
Front master cilinder
00H02111081
Non disponible
13
screw
00004163500
Non disponible
14
Tank cover
00H02102191
Non disponible
15
Gasket
00H02102861
Non disponible
16
screw 4M80X12
00014041200
Non disponible
17
Lever
00H00907201
Non disponible
18
Brake hose
00H00922751
Non disponible
19
Oil pipe screw
00006309260
Non disponible
20
Washer
00006321040
Non disponible
21
Clutch control complete
00H02108611
Non disponible
22
LH hand grip
00H00902071
Non disponible
23
LH lights selector
861205
Non disponible
24
Clutch lever
00H00904291
Non disponible
25
Clutch lever adjuster
00H00900551
Non disponible
26
Clutch cable
00H00921301
Non disponible
27
Choke cable
00H00904651
Non disponible
28
Stop switch
00D01000701
$7,02 Prix unitaire TTC
29
Cap
00005010760
$4,82 Prix unitaire TTC
30
Guard
00H01000541
Non disponible
31
screw
00004062200
$3,65 Prix unitaire TTC
32
screw
00002061011
Non disponible
33
Flange
00H02200591
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
