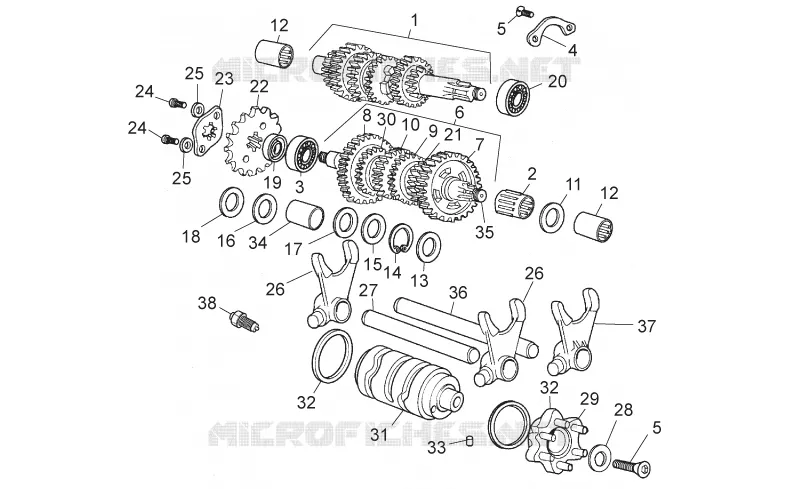

Boîte de vitesses
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
26
27
28
29
30
31
32
32
33
34
35
36
37
38
1
Primary gear shaft assy. 6 v.ta'
847027
$189,97 Prix unitaire TTC
2
Roller cage
847544
$24,14 Prix unitaire TTC
3
Bearing
847086
Non disponible
4
Plate
847021
$2,13 Prix unitaire TTC
5
screw
847210
Non disponible
6
Secondary shaft cpl. 6 v.ta'
847028
$98,06 Prix unitaire TTC
7
Gear 1A Z=34
847153
$13,80 Prix unitaire TTC
8
Gear 2A Z=30
847157
$45,19 Prix unitaire TTC
9
Gear 3A Z=27
847155
$13,47 Prix unitaire TTC
10
Gear 4A Z=24
847156
$45,19 Prix unitaire TTC
11
Washer
847549
$0,72 Prix unitaire TTC
12
Roller cage
847211
$2,85 Prix unitaire TTC
13
Washer
847550
Non disponible
14
Safety washer
847542
$1,55 Prix unitaire TTC
15
Washer1x16x23.5
847548
$0,72 Prix unitaire TTC
16
Washer 1x18x23
847541
$0,68 Prix unitaire TTC
17
Shim washer 17,1x25x0,8
847546
$0,68 Prix unitaire TTC
18
Washer 1.2x17x28
847545
$0,68 Prix unitaire TTC
19
Oil seal
847019
$1,63 Prix unitaire TTC
20
Bearing
847209
$4,92 Prix unitaire TTC
21
Gear 5A Z=23
847154
$177,52 Prix unitaire TTC
22
Pinion Z=14
00H02805371
Non disponible
22
Pinion Z=11
00H02813371
Non disponible
23
Plate
00H02810421
$3,65 Prix unitaire TTC
23
Plate
00H02800421
$1,92 Prix unitaire TTC
24
screw
00000004510
$2,95 Prix unitaire TTC
24
screw 4M70X10
00002041050
Non disponible
25
Washer D4
00000033040
$3,65 Prix unitaire TTC
25
Washer D5
00000031050
Non disponible
26
Fork
847032
Non disponible
27
Fork guide pin w/shank
847030
$3,51 Prix unitaire TTC
28
Washer
847214
$0,57 Prix unitaire TTC
29
Shift cam plate
847038
$125,27 Prix unitaire TTC
30
Gear 6A Z=22
847158
$45,19 Prix unitaire TTC
31
Shift cam
847034
Non disponible
32
Washer
847036
$3,65 Prix unitaire TTC
33
Piston pin 4X6
847213
Non disponible
34
Bush
847547
$1,25 Prix unitaire TTC
35
Secondary gear shaft
847159
$322,76 Prix unitaire TTC
36
Fork guide pin w/shank
847029
$3,01 Prix unitaire TTC
37
Fork
847031
Non disponible
38
Switch
847018
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
