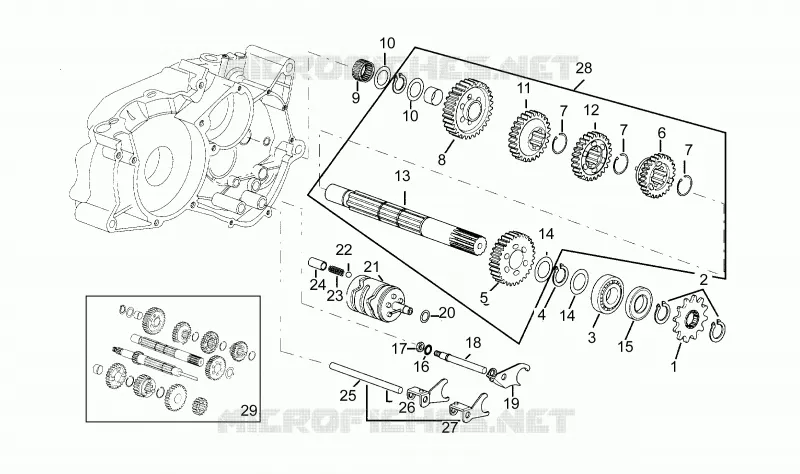

Arbre secondaire boite 5 vitesses
1
2
3
4
5
6
7
7
7
8
9
10
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Intermediate gear Z=14
AP8206314
Non disponible
1
Intermediate gear Z=13
AP8206355
$20,11 Prix unitaire TTC
1
Intermediate gear Z=11
AP8206313
Non disponible
1
Intermediate gear Z=12
AP8206376
Non disponible
2
Outside circlip D17
AP8501484
Non disponible
3
Bearing D17x40x12
AP8502626
Non disponible
4
Outside circlip D17
AP8206233
Non disponible
5
2nd wheel gear Z=33
AP8206443
Non disponible
6
5th wheel gear Z=25
AP8206446
Non disponible
7
Outside circlip D20
AP8507866
Non disponible
8
1st wheel gear Z=36
AP8206442
Non disponible
9
Gear bush 13x20x13,5
AP8206536
Non disponible
10
Blue steel washer D13x25
AP8206347
Non disponible
11
4th wheel gear Z=27
AP8206445
Non disponible
12
3rd wheel gear Z=29
AP8206444
Non disponible
13
Secondary gear shaft
AP8206436
Non disponible
14
Blue steel washer D17,2x30
AP8502498
Non disponible
15
Oil seal D17x35x7
AP8206291
Non disponible
16
Int. notched washer D7
AP8502473
$3,65 Prix unitaire TTC
17
Nut M7x5,5
AP8502414
Non disponible
18
Fork guide pin
AP8206298
$16,44 Prix unitaire TTC
19
Fork 4-5 speed
AP8206434
Non disponible
20
Blue steel washer D10x16
AP8206269
$3,65 Prix unitaire TTC
21
Shift cam
AP8206431
Non disponible
22
Key Balance shaft 4x4x8
AP8206263
$4,82 Prix unitaire TTC
23
Gear indicator spring
AP8206261
Non disponible
24
Pin retainer
AP8206336
Non disponible
25
Fork guide pin
AP8502826
Non disponible
26
Fork 1 speed
AP8206432
Non disponible
27
Fork 2-3 speed
AP8206433
Non disponible
28
Primary gear shaft assy.5 spd.
AP8206723
Non disponible
29
Gear box cpl.5 speed
AP8206449
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
