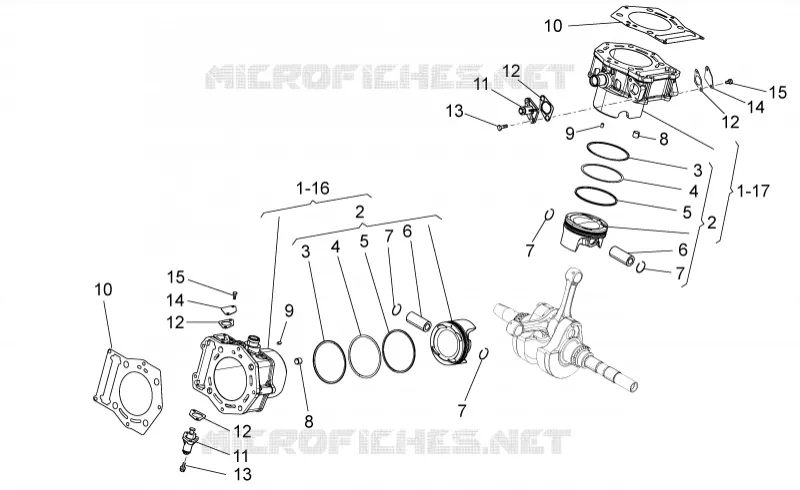

Cylindre av.piston
10
9
9
8
8
7
7
7
7
6
6
5
5
4
4
3
3
2
2
1
1
10
11
11
12
12
12
12
13
13
14
14
15
15
16
17
1
Cylinder with piston
874989
Non disponible
2
Piston assy cat.3 "C"
8749880003
$115,44 Prix unitaire TTC
2
Piston assy cat.1 "A"
8749880001
Non disponible
2
Piston assy cat.1 "M"
B0148020001
$117,45 Prix unitaire TTC
2
Piston assy cat.2 "N"
B0148020002
$117,45 Prix unitaire TTC
2
Piston assy cat.2 "B"
8749880002
Non disponible
2
Piston assy cat.4 "D"
8749880004
Non disponible
2
Piston assy cat.4 "P"
B0148020004
Non disponible
2
Piston assy cat.3 "O"
B0148020003
$117,45 Prix unitaire TTC
3
Compression ring
844941
$47,88 Prix unitaire TTC
4
Oil scraper ring
844942
$43,76 Prix unitaire TTC
5
Oil scraper ring
844943
$10,91 Prix unitaire TTC
6
Piston pin
827820
$26,21 Prix unitaire TTC
7
Stop ring
828116
$0,29 Prix unitaire TTC
8
Pin 11,8X10
825597
$0,94 Prix unitaire TTC
9
Locating dowel
484993
$0,16 Prix unitaire TTC
10
Cylinder head gasket
831203
$18,18 Prix unitaire TTC
11
Complete chain tensioner
82650R
$34,52 Prix unitaire TTC
12
Guarnizione cilindro/tendicatena
847928
$0,42 Prix unitaire TTC
13
Screw w/ flange M6x16
434541
$0,09 Prix unitaire TTC
14
Plate
840135
$0,92 Prix unitaire TTC
15
Screw w/ flange M6x14
833722
Non disponible
16
Cylinder with piston ant.
B016146
Non disponible
17
Cylinder with piston post.
B016145
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
